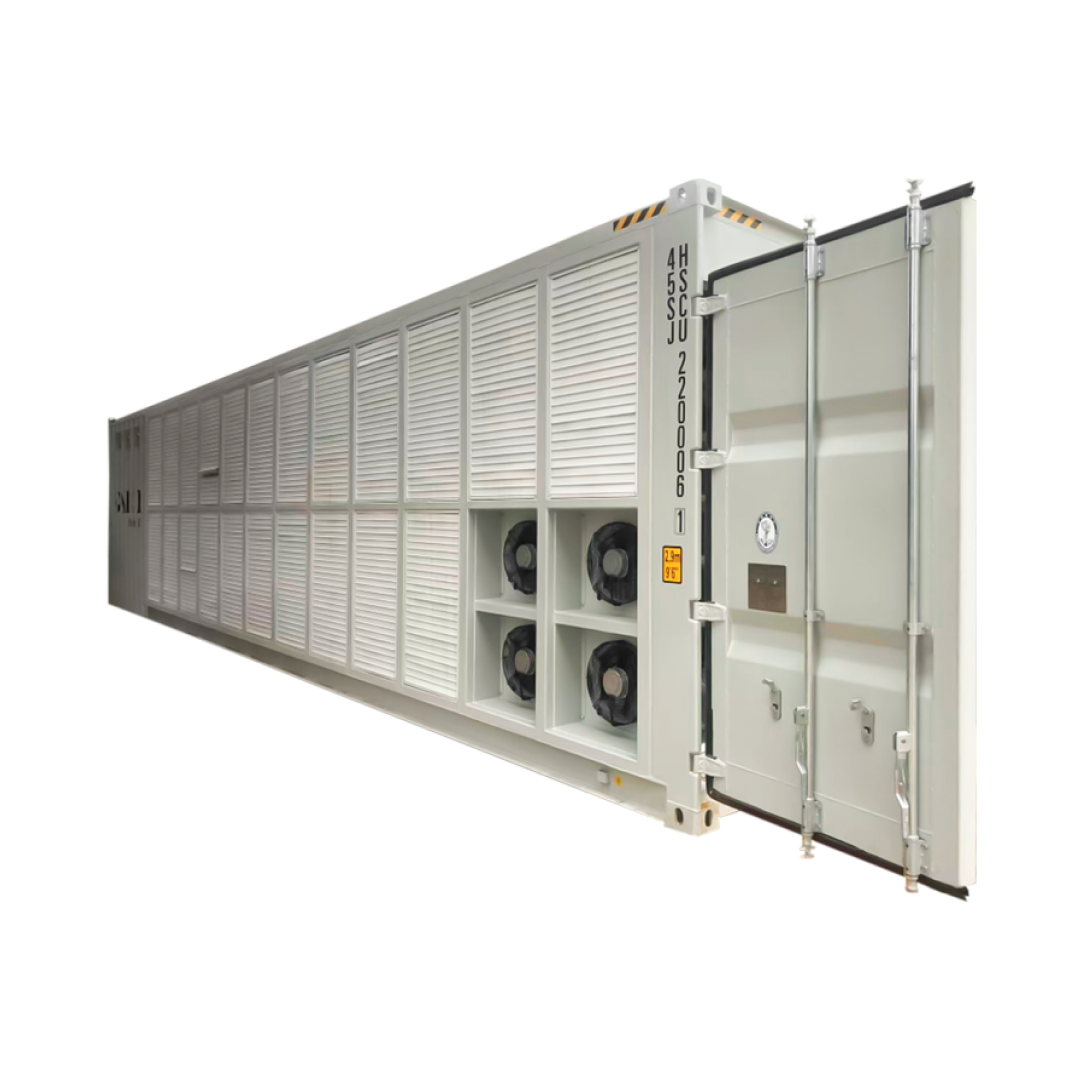

The 40-foot Container
Wattum’s largest mobile mining container can hold up to 340 ASICs with a total 1.4 MW capacity, measuring 40 feet in length and 8 feet in width.
WATTUM CONTAINER SPECIFICATIONS
CONTAINER DIMENSIONSSize of container, ft4040-ft container (new or used), pcs1EXTERNALLength40' (11900mm)Width7' (2200mm)Height8' 1" (2450mm)INTERNALLength38' (11600mm)Width7' (2200mm)Height8' (2400mm)
GENERAL SPECIFICATIONSBox weight5 US ton (4500kg)Box running weight10 US ton (8500kg-9500kg)ColorFactory default whiteTotal capacity1.3MWNumber of Asic devices324(3.5 kW each)Frequency, Hz50/60HzSafety CertificationUL/CSA certification through North AmericaOperational conditionsfrom -13°F to +104°F (-25~40℃)Working Humidity10%-90%RHPlug&PlayYesMaintenanceRemote/onsiteCooling power, cfm294280
ELECTRICAL EQUIPMENTPower Distribution Cabinet MMC, 21PB1018A1Power Distribution Cabinet Operating power1300KWPower Distribution Cabinet Voltage380~415VPower Distribution Cabinet Voltage Frequency50/60HzPower Distribution Cabinet Feeder Cable, withstand voltage 600V or moresingle-core, 600kcMilTransformer Adaption2500KVA transformer with 2 containersPlastic Case Openings M6S1200E3, 1200A*21Plastic Case Openings M6S400T3, 400A*63Micro-break, B1N3D63, 63A36PDU 3s80Xd1-2E12G18PDU, CSA Certification, 16A14 holesPDUs with one switch for easy maintenance3 groupsPDU 3s80Xd1-2E12G connected to switch, PC2 bits 10A high powerPDU 3s80Xd1-2E12G, connected to the mining machine12-bit 16A high powerPower line, 6AWG656 ft (200 m)Distribution Cabinet Sound IsolationYesDistribution Cabinet Frame and CableYesDistribution system power ark2 setsMain plastic case leakage circuit breaker, UI Certification2Auxiliary plastic case leakage circuit breaker UI Certification36Louver4*7*0,2, 6 pcs (1330*2195*63mm)Lighting 24W, pcs4Emergency LightingYes

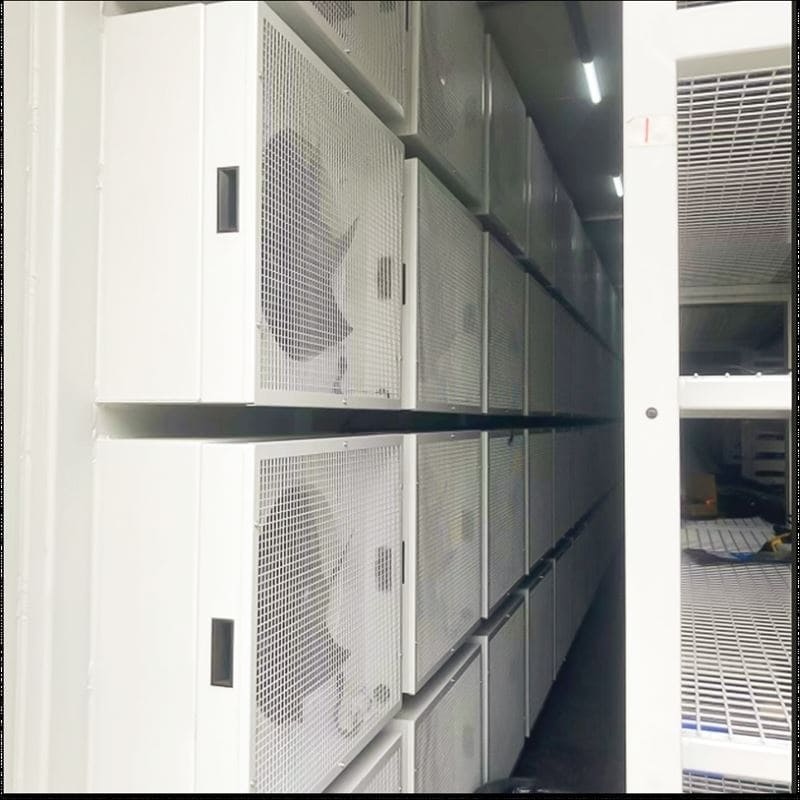

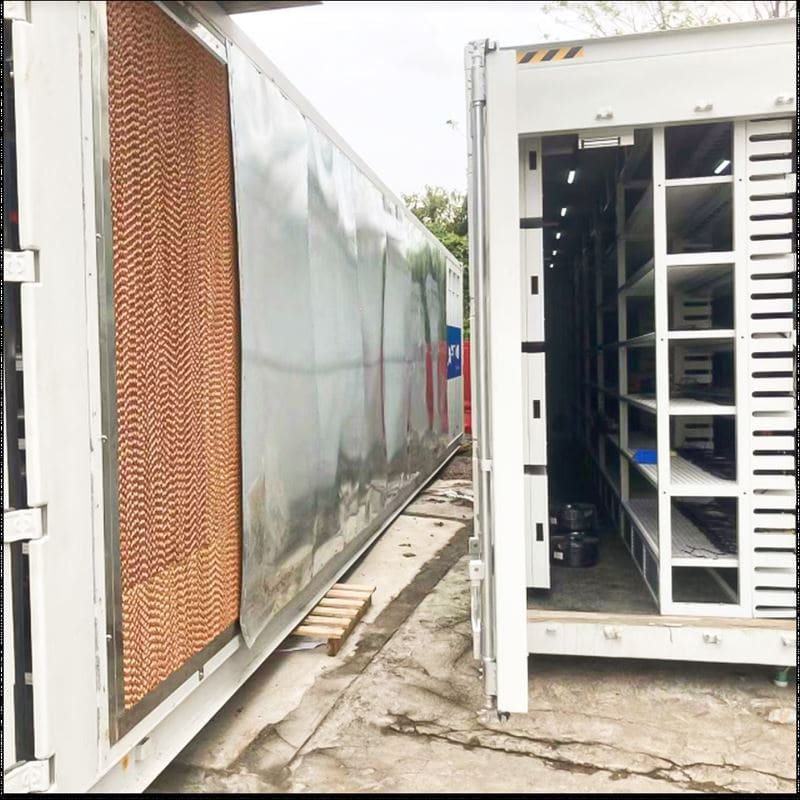

HEAT MANAGEMENT AND COOLING SYSTEMCooling power20 fansFans Size3.2*3.2*1.1' (1000*1000*350mm)Fans diameter35.4″ (900mm)Fans power0.75 kWFans Capacity, cfm294280 cfmFans Noise decibels, db＜65dbFans Total Pressure70paFans Motor0.55kw; 380v 50hz; 1400rpmFans Blade430 Krupp stainless steelFans Blade speed610rpmSanlux BeltDriveFans FrameHot-dip galvanized material, 0.8mm thickness (Hot-dip galvanized material, 0.002ft thickness)Fans Belt pulleyaluminum-magnesium alloyFans BearingDouble-row bearing with special waterproofFan weight88 lbs (40kg)Water curtain wall specificationsSize4 pcs x 7*0,3*6 (2200mm*100mm*1900mm)Air blower16 pcs x 3*1*3 (1000mm*350mm*1000mm)Rack6 layers, totally 36 shelves x 6*1*7 (1900mm*400mm*2200mm )Framework overall use Hot rollingYesFramework overall use Cold rollingYesFramework overall use Square tube seamless weldingYesFramework overall use outside plastic sprayingYesFramework overall use spray paint technologyYes
NETWORK SYSTEMNetwork Super Category 5 cable43224-port 100 Megabit Switch9 setsMine box after power Plug & PlayYesSwitch 20 MB mouth16
WHY CHOOSE US?
Wattum is a complete mining solutions provider, offering equipment management, optimization, and security solutions both remotely and on-site. We are a one-stop service for all of your Bitcoin mining needs.
