THE WATTUM
MINING CONTAINER

Our most efficient and flexible mining solution yet.

REQUEST AVAILABILITY

324 ASIC Devices 3.5 kW per ASIC

1.3 MW Total Capacity

294280 cfm Cooling Power

THE MOBILE MINING SOLUTION

The Wattum crypto mining container is a purpose-built mining solution that provides increased mobility and efficiency and reduces overall operational costs. It can hold up to 324 ASICs and can be easily deployed in areas with abundant energy and low electricity rates.

GALLERY

Explore the Wattum Mining Container

SOLUTIONS MADE FOR YOU

The 40-foot Container

Wattum’s largest mobile mining container can hold up to 340 ASICs with a total 1.4 MW capacity, measuring 40 feet in length and 8 feet in width.

WATTUM CONTAINER SPECIFICATIONS

CONTAINER DIMENSIONS

Size of container, ft

40

40-ft container (new or used), pcs

1

EXTERNAL

Length

40' (11900mm)

Width

7' (2200mm)

Height

8' 1" (2450mm)

INTERNAL

Length

38' (11600mm)

Width

7' (2200mm)

Height

8' (2400mm)
GENERAL SPECIFICATIONS

Box weight

5 US ton (4500kg)

Box running weight

10 US ton (8500kg-9500kg)

Color

Factory default white

Total capacity

1.3MW

Number of Asic devices

324(3.5 kW each)

Frequency, Hz

50/60Hz

Safety Certification

UL/CSA certification through North America

Operational conditions

from -13°F to +104°F (-25~40℃)

Working Humidity

10%-90%RH

Plug&Play

Yes

Maintenance

Remote/onsite

Cooling power, cfm

294280
ELECTRICAL EQUIPMENT

Power Distribution Cabinet MMC, 21PB1018A

1

Power Distribution Cabinet Operating power

1300KW

Power Distribution Cabinet Voltage

380~415V

Power Distribution Cabinet Voltage Frequency

50/60Hz

Power Distribution Cabinet Feeder Cable, withstand voltage 600V or more

single-core, 600kcMil

Transformer Adaption

2500KVA transformer with 2 containers

Plastic Case Openings M6S1200E3, 1200A*2

1

Plastic Case Openings M6S400T3, 400A*6

3

Micro-break, B1N3D63, 63A

36

PDU 3s80Xd1-2E12G

18

PDU, CSA Certification, 16A

14 holes

PDUs with one switch for easy maintenance

3 groups

PDU 3s80Xd1-2E12G connected to switch, PC

2 bits 10A high power

PDU 3s80Xd1-2E12G, connected to the mining machine

12-bit 16A high power

Power line, 6AWG

656 ft (200 m)

Distribution Cabinet Sound Isolation

Yes

Distribution Cabinet Frame and Cable

Yes

Distribution system power ark

2 sets

Main plastic case leakage circuit breaker, UI Certification

2

Auxiliary plastic case leakage circuit breaker UI Certification

36

Louver

4*7*0,2, 6 pcs (1330*2195*63mm)

Lighting 24W, pcs

4

Emergency Lighting

Yes
HEAT MANAGEMENT AND COOLING SYSTEM

Cooling power

20 fans

Fans Size

3.2*3.2*1.1' (1000*1000*350mm)

Fans diameter

35.4″ (900mm)

Fans power

0.75 kW

Fans Capacity, cfm

294280 cfm

Fans Noise decibels, db

＜65db

Fans Total Pressure

70pa

Fans Motor

0.55kw; 380v 50hz; 1400rpm

Fans Blade

430 Krupp stainless steel

Fans Blade speed

610rpm

Sanlux Belt

Drive

Fans Frame

Hot-dip galvanized material, 0.8mm thickness (Hot-dip galvanized material, 0.002ft thickness)

Fans Belt pulley

aluminum-magnesium alloy

Fans Bearing

Double-row bearing with special waterproof

Fan weight

88 lbs (40kg)

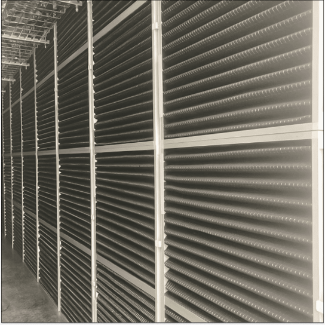

Water curtain wall specifications

Size

4 pcs x 7*0,3*6 (2200mm*100mm*1900mm)

Air blower

16 pcs x 3*1*3 (1000mm*350mm*1000mm)

Rack

6 layers, totally 36 shelves x 6*1*7 (1900mm*400mm*2200mm )

Framework overall use Hot rolling

Yes

Framework overall use Cold rolling

Yes

Framework overall use Square tube seamless welding

Yes

Framework overall use outside plastic spraying

Yes

Framework overall use spray paint technology

Yes
NETWORK SYSTEM

Network Super Category 5 cable

432

24-port 100 Megabit Switch

9 sets

Mine box after power Plug & Play

Yes

Switch 20 MB mouth

16

SMART TECHNOLOGY FOR IMPROVED PERFORMANCE

All-weather
Durability

Secure and
Long-lasting

Сompatible with
S19/S17/T19 Miners

Optimized
Cooling System

UL/CSA
Сertified

Automatic Power
Management

THE WATTUM MINING CONTAINER IS A PURPOSE-BUILT MINING UNIT THAT OFFERS FLEXIBILITY AND EFFICIENCY LIKE NEVER BEFORE

FREQUENTLY ASKED QUESTIONS

What are the benefits of a mining container compared to a mining facility?

Specialized mining facilities can have significant drawbacks. They may require specific permits and their development and profitability may be impacted by bureaucracy and compliance costs. Mobile mining units allow miners to deploy and operate in a region with more attractive electricity costs. Containers are mobile, allowing miners to relocate should the need arise.
Who are mining containers for?

For everyone. Wattum Mining Containers are mobile solutions that allow miners to operate without a building to host machines in. Containers can be deployed near an energy provider of your choice, potentially allowing for higher profit margins compared to stationary facilities that are dependent on their local power grid.
How many miners does the Wattum container support?
The Wattum mining container can hold up to 324 ASIC units, with a 3.5 kWh capacity each. That means you can plug and play:
- 324 Antminer S19;
- 324 WhatsMiner M30S, M31S;
- 324 Avalon 1166, 1246;
- 324 Innosilicon.
Can I purchase mining equipment with a mining container?

Yes. Wattum also offers Container Bundles that make it easier to get your mobile operation up and running. Talk to your sales representative to learn more about Bundles today.
Are Wattum mining containers UL/CSA certified?

While the Wattum container itself is not UL/CSA certified, all of its major electrical components, such as Control Panel, PDUs, Breakers, Switches, Network Components, and more are UL/CSA certified.
Does the Wattum container come with all necessary electrical hardware required to operate mining equipment?

Yes.
