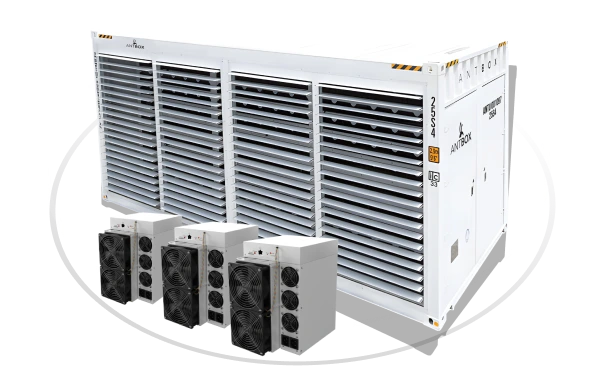

BITMAIN ANTBOX
CONTAINER BUNDLE

Container Bundles combine transformers and mining equipment, putting you in control of the workload.

REQUEST A QUOTE
miner
item-1
745 KW Total Capacity
item-2
3.5 KW PER ASIC up to 207 ASIC Units
item-3
-13°F to +104°F Operational Conditions

SOLUTIONS MADE FOR YOU

ANTBOX BENEFITS

Experience a new world of Bitcoin mining with the Bitmain Antbox Mining Container.

Energy Saving Design
Fast to deploy
Easily Transported
Cost-Effective
Optimal Productivity
Safe and Reliable

WATTUM CONTAINER SPECIFICATIONS

  • CONTAINER DIMENSIONS

    Type of sea container, feet
    20 HQ
    20-ft HQ cargo container, pcs
    1
    EXTERNAL
    Length
    20' (6058 mm)
    Width
    7' (2438 mm)
    Height
    8'1 (2896 mm)

  • GENERAL SPECIFICATIONS

    Hauled weight
    4.4 US ton (4053 kg)
    Operating weight
    7.9 US ton (7200 kg)
    Color
    Factory default white
    Total capacity
    745KW
    Number of Asic devices
    207(3.5 kW each)
    Applicable Mining machine
    S19 Series Antminers
    Frequency, Hz
    50/60Hz
    Safety Certification
    UL/CSA
    Operational conditions
    from -13°F to +104°F (-25°C +40°C)
    Working Humidity
    10%-90%
    Plug&Play
    Yes
    Security Camera
    Yes
    Lightweight materials
    Yes
    Price
    $95,000
    $95,000 - 9 week wait
    your price $95,000
    Type
    Containers
    Model
    745KW Antbox N5 V2 Container 20'
    Condition
    New
    Location
    USA
    ROI
    Call sales
    Hosting
    Wattum Hosting
    Hash Rate@Power
    Call sales
    Availability
    In stock
    Manufacturer
    Wattum

  • ELECTRICAL EQUIPMENT

    Power Distribution Cabinet
    1 set
    Input Voltage, V
    380-415 AC
    Capacity of the main switch
    1250A
    PDU
    24 (Each: C13X18 (Mining Machine) +C13X1 (Switch))
    Power Consumption
    3200-3600 W
    Switch
    12 set (24 Ports)
    Transformer Adaption
    2500 KVA transformer with 3 containers
    Inlet indicator
    Green light

  • HEAT MANAGEMENT AND COOLING SYSTEM

    Cooling Pad
    2pcs of 25mm Inlet Tube
    Manual Shutter
    Yes
    Augmented heat isolation
    Yes
    Fan-less design with shutters for air in and out
    Yes
    Fireproof and flame retardant materials
    Yes

  • NETWORK SYSTEM

    Intel Cable
    Single Core 600kcMil (300 mm2) *4*5, Above 600 V
    Ethernet Cable
    207 FIP Single Shielded Cable
    AC Cable
    207*2 PCS (C14 Female Connector on one terminal, ?13 Male Connector on the other terminal. UL certificate)

  • INSTALLATION

    Rated Curent
    1250 A
    The ground should be hardened enough to support
    3 floors (22t)
    The flatness of the ground
    -1
    The broadband of internet in the field
    100M
    The ether cable
    SFTP/CAT5e
    Can be easily moved
    Yes
    Assembly Height
    Not recommended to be more than 3 layers, 342 inch
    Assembly Length
    Not recommended to be over 6 sets
    Arrangement Mode
    Air inlets should be in the opposite sites
    Distance between inlets
    29 ft recommended (900 mm)
    Distance between each row and group of containers
    6 ft recommended (200 mm)

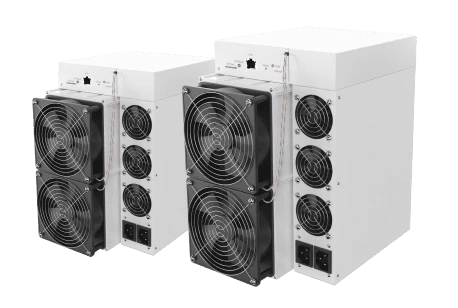

BITMAIN ANTMINER S19 MINERS

Bitmain's S19 series offers the most efficient Bitcoin mining ASICs available, with a highly competitive hashrate and consumption to price ratio among crypto mining hardware.

START HASHING

S19 SERIES

With up to 15 different models to choose from in the Antminer S19 series, each model demonstrates the highest standard of features and specifications that can be found on today's market. The S19 offers value and a competitive advantage to your mining operations. To findthe S19 that’s right for you, we’ve included a list of all S19 models and their specifications for your reference.

Select S19 Model

miner
S19 PRO+ HYDRO
miner
ANTMINER S19 XP
miner
Antminer S19
miner
Antminer S19 Pro
miner
Antminer S19j
miner
Antminer S19j Pro

Bitmain Antminer S19 PRO+ HYDRO models comparison

Condition
new
Hash rate
188 Th/s
Power
5445W
Efficiency
0.028j/Gh
Algorithm
SHA-256
Network
Ethernet
Voltage
12V
Chip
-
Fan(s)
4
Noise level
26db
Temperature
5-40°C 41-104°F
Humidity
5-95%
Size
410x196x209mm 16.1x7.7x8.2inch
Weight
17500g 39lbs
Release Date
August 2022

Bitmain Antminer S19 XP models comparison

Condition
new
Hash rate
134 Th/s
Power
3010W
Efficiency
0.022j/Gh
Algorithm
SHA-256
Network
Ethernet
Voltage
-
Chip
5-nanometer chip
Fan(s)
4
Noise level
75db
Temperature
5-45°C 41-113°F
Humidity
5-95%
Size
195x290x400mm 7.7x11.4x15.7inch
Weight
14500g 32lbs
Release Date
July 2022

Bitmain Antminer S19 models comparison

Condition
new
new
Hash rate
95 Th/s
110 Th/s
Power
3250W
3250W
Efficiency
0.034j/Gh
0.029j/Gh
Algorithm
SHA-256
SHA-256
Network
Ethernet
Ethernet
Voltage
12V
12V
Chip
7nm ASIC BM1397
7nm ASIC BM1397
Fan(s)
4
4
Noise level
75db
75db
Temperature
5-40°C 41-104°F
5-40°C 41-104°F
Humidity
5-95%
5-95%
Size
195x290x400mm 7.7x11.4x15.7inch
195x290x400mm 7.7x11.4x15.7inch
Weight
14500g 32lbs
14500g 32lbs
Release Date
May 2020
January 2020

Bitmain Antminer S19 Pro models comparison

Condition
new
new
Hash rate
95 Th/s
110 Th/s
Power
3250W
3250W
Efficiency
0.034j/Gh
0.03j/Gh
Algorithm
SHA-256
SHA-256
Network
Ethernet
Ethernet
Voltage
12V
12V
Chip
7nm ASIC BM1397
7nm ASIC BM1397
Fan(s)
4
4
Noise level
75db
75db
Temperature
5-40°C 41-104°F
5-40°C 41-104°F
Humidity
5-95%
5-95%
Size
195x290x370mm 7.7x11.4x14.6inch
195x290x370mm 7.7x11.4x14.6inch
Weight
13200g 29lbs
13200g 29lbs
Release Date
-
May 2020

Bitmain Antminer S19j models comparison

Condition
new
new
new
new
Hash rate
90 Th/s
94 Th/s
95 Th/s
104 Th/s
Power
3250W
3250W
3250W
3050W
Efficiency
0.036j/Gh
0.034j/Gh
0.034j/Gh
0.029j/Gh
Algorithm
SHA-256
SHA-256
SHA-256
SHA-256
Network
Ethernet
Ethernet
Ethernet
Ethernet
Voltage
12V
12V
12V
12V
Chip
7nm ASIC BM1397
7nm ASIC BM1397
7nm ASIC BM1397
7nm ASIC BM1397
Fan(s)
5
4
4
4
Noise level
75db
75db
75db
75db
Temperature
5-45°C 41-113°F
5-40°C 41-104°F
5-40°C 41-104°F
5-40°C 41-104°F
Humidity
5-95%
5-95%
5-95%
5-95%
Size
195x290x370mm 7.7x11.4x14.6inch
195x290x370mm 7.7x11.4x14.6inch
195x290x370mm 7.7x11.4x14.6inch
195x290x370mm 7.7x11.4x14.6inch
Weight
14200g 31lbs
14200g 31lbs
14200g 31lbs
14200g 31lbs
Release Date
June 2021
October 2020
May 2020
May 2020

Bitmain Antminer S19j Pro models comparison

Condition
new
new
new
new
new
Hash rate
95 Th/s
96 Th/s
100 Th/s
100 Th/s
104 Th/s
Power
3250W
2832W
3250W
3050W
3068W
Efficiency
0.034j/Gh
0.03j/Gh
0.032j/Gh
0.031j/Gh
0.03j/Gh
Algorithm
SHA-256
SHA-256
SHA-256
SHA-256
SHA-256
Network
Ethernet
Ethernet
Ethernet
Ethernet
Ethernet
Voltage
12V
12V
12V
12V
12V
Chip
7nm ASIC BM1397
7nm ASIC BM1397
7nm ASIC BM1397
7nm ASIC BM1397
7nm ASIC BM1397
Fan(s)
4
4
4
4
4
Noise level
75db
75db
75db
75db
75db
Temperature
5-40°C 41-104°F
5-45°C 41-113°F
5-40°C 41-104°F
5-40°C 41-104°F
5-35°C 41-95°F
Humidity
5-95%
5-95%
5-95%
5-95%
5-95%
Size
195x290x400mm 7.7x11.4x15.7inch
195x290x400mm 7.7x11.4x15.7inch
195x290x400mm 7.7x11.4x15.7inch
195x290x400mm 7.7x11.4x15.7inch
195x290x370mm 7.7x11.4x14.6inch
Weight
14500g 32lbs
14200g 31lbs
14500g 32lbs
13200g 29lbs
13200g 29lbs
Release Date
-
August 2021
June 2021
June 2021
July 2021
Imperial
Metric
S19 PRO+ HYDRO

Compare Bitmain Antminer S19 PRO+ HYDRO models

Imperial
Metric
Condition
Hash rate
Power
Efficiency
Algorithm
Network
Voltage
Chip
Fan(s)
Noise level
Temperature
Humidity
Size
Weight
Release Date
new
5445W
0.028j/Gh
SHA-256
Ethernet
12V
-
4
26db
5-40°C 41-104°F
5-95%
410x196x209mm 16.1x7.7x8.2inch
17500g 39lbs
August 2022
ANTMINER S19 XP

Compare Bitmain Antminer S19 XP models

Imperial
Metric
Condition
Hash rate
Power
Efficiency
Algorithm
Network
Voltage
Chip
Fan(s)
Noise level
Temperature
Humidity
Size
Weight
Release Date
new
3010W
0.022j/Gh
SHA-256
Ethernet
-
5-nanometer chip
4
75db
5-45°C 41-113°F
5-95%
195x290x400mm 7.7x11.4x15.7inch
14500g 32lbs
July 2022
Antminer S19

Compare Bitmain Antminer S19 models

Imperial
Metric
Condition
Hash rate
Power
Efficiency
Algorithm
Network
Voltage
Chip
Fan(s)
Noise level
Temperature
Humidity
Size
Weight
Release Date
new
3250W
0.034j/Gh
SHA-256
Ethernet
12V
7nm ASIC BM1397
4
75db
5-40°C 41-104°F
5-95%
195x290x400mm 7.7x11.4x15.7inch
14500g 32lbs
May 2020
Antminer S19 Pro

Compare Bitmain Antminer S19 Pro models

Imperial
Metric
Condition
Hash rate
Power
Efficiency
Algorithm
Network
Voltage
Chip
Fan(s)
Noise level
Temperature
Humidity
Size
Weight
Release Date
new
3250W
0.034j/Gh
SHA-256
Ethernet
12V
7nm ASIC BM1397
4
75db
5-40°C 41-104°F
5-95%
195x290x370mm 7.7x11.4x14.6inch
13200g 29lbs
-
Antminer S19j

Compare Bitmain Antminer S19j models

Imperial
Metric
Condition
Hash rate
Power
Efficiency
Algorithm
Network
Voltage
Chip
Fan(s)
Noise level
Temperature
Humidity
Size
Weight
Release Date
new
3250W
0.036j/Gh
SHA-256
Ethernet
12V
7nm ASIC BM1397
5
75db
5-45°C 41-113°F
5-95%
195x290x370mm 7.7x11.4x14.6inch
14200g 31lbs
June 2021
Antminer S19j Pro

Compare Bitmain Antminer S19j Pro models

Imperial
Metric
Condition
Hash rate
Power
Efficiency
Algorithm
Network
Voltage
Chip
Fan(s)
Noise level
Temperature
Humidity
Size
Weight
Release Date
new
3250W
0.034j/Gh
SHA-256
Ethernet
12V
7nm ASIC BM1397
4
75db
5-40°C 41-104°F
5-95%
195x290x400mm 7.7x11.4x15.7inch
14500g 32lbs
-
Request a quote
If you’re interested in hosting or are looking to purchase more than 5 units, request a quote above.

THE 3000 KVA PAD MOUNTED TRANSFORMER

The Wattum transformer is self-cooled and is an energy efficient, low noise, pad-mounted distribution transformer with a rated capacity of 3000 kVA. ​​Designed for commercial and residential applications, this is the perfect power supply for your mining container.

WATTUM 3 PHASE PAD MOUNTED TRANSFORMER WALKTHROUGH VIDEO

WATTUM TRANSFORMER SPECIFICATIONS

  • TRANSFORMER DIMENSIONS

    Overall Dimensions, Inches
    80.4 (W) X 90.9 (D) X 79.9 (H)
    Core & Coil
    6,548 lb (2970 kg)
    Tank & Fittings
    4,482 lb (2033 kg)
    Insulation Oil
    3,454 lb (1566 kg)
    Total Weight
    14,770 lb (6700 kg)
    Colour
    Green Munsell # 7.0gy-3.29/1.5

  • OTHER SPECIFICATIONS

    H.V Bushing Wells & Inserts - 15 Kv 200a
    6 Pc
    L.V Bushing - 2.5kv 5000a
    4 Pc
    De-Energized Tap Changer (Detc) - 5-Step, 150a
    1 Pc
    Oil Level Gauge
    1 Pc
    Oil Temperature Indicator
    1 Pc
    Pressure Relief Valve
    1 Pc
    Pressure Vacuum Gauge
    1 Pc
    Radiators (Welding)
    3 Pc
    Loadbreak Switch T-Blade - 4 Position, 200a
    1 Pc
    Oil Upper Fill Plug - 1 Inch
    1 Pc
    Drain Valve With Sampler - 2 inch (51mm)
    2 Pc
    Gas Sample Valve
    1 Pc
    Pad Lockable Door Handle
    1 Pc
    Tank
    1 Pc
    Lifting Hook For Complete Transformer
    4 Pc
    LV Breaker
    1 Pc
    Removable Ground Strap
    1 Pc
    2 Hole Ground Pad For Main Body
    3 Pc
    Metal L.V-H.V Barrier
    1 Pc
    Name Plate (On Local Door)
    1 Pc

  • GENERAL

    Class
    3000 Kva (Onan, 3ph, 60hz, Oil Filled)
    High Voltage
    13800v Delta, 95kv Bil
    Temperature Rise
    65 Rise
    Low Voltage
    415y/240v, 30kv Bil
    Cooling
    ONAN
    Fluids
    Mineral oil type II
    Core Design
    5 Legged
    Winding
    Star or Delta
    Nema 3r Enclosure
    Yes
    Bottom Feed
    Yes
    Audible Sound Level
    55 db
    Availability
    In Stock

  • APPLICABLE STANDARDS

    Ieee C57.12.00
    Yes
    Ieee C57.12.90
    Yes

WHY CHOOSE US?

Wattum is a complete mining solutions provider, offering equipment management, optimization, and security solutions both remotely and on-site. We are a one-stop service for all of your Bitcoin mining needs.

On-site Security
& Maintenance
Repair
Solutions
Transaction
Transparency
Technical
Support
Free
Consultations
Turnkey Mining
Solutions

OUR PROCESSES

  • icon 1

    Identify Potential Site

    Our team researches and identifies potential sites for your mining operations.

  • icon 2

    Inspect Site

    Once identified, a thorough inspection is completed to ensure the site is suitable.

  • icon 3

    Communicate with Utility Company

    Our team communicates directly with the local utility company, negotiating the best available rates.

  • icon 4

    Build Container

    Your mobile container is built and prepared for transportation to the final site.

  • icon 5

    Transport Container and Transformer

    As part of your bundle, the container and transformer are transported to the site.

  • icon 6

    On-Site Installation

    Once your bundle has arrived, our team performs a complete on-site installation to help you get started as soon as possible.

TAILORED MINING SOLUTIONS

  • icon 1

    Location Flexibility

  • icon 2

    Fast to Deploy

  • icon 3

    Lower Startup Costs

  • icon 4

    Faster Go-Live

  • icon 5

    Sustainable Investment

  • icon 6

    Remote Management

mail

JOIN THE CONVERSATION

Sign up for our weekly newsletter and receive news updates, special equipment offers, and so much more, straight to your inbox

CONTACT US TO LEARN MORE

Fill out your contact information and we'll get back to you as soon as we can.
